Durable & Tough Cnc Press Brake Machine HSC PRO-40T/1600 For Durable Component Fabrication

Product Categories
Maanshan Genuo Machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Durable & Tough Cnc Press Brake Machine HSC PRO-40T/1600 For Durable Component Fabrication

  • 1
  • 2

Brand Name : GENUO

Model Number : HSC PRO - 80T/100T/125T/160T/200T/250T

Certification : M.2019.206.C3862

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T,D/P,D/A

Supply Ability : 1 Set/Sets Every 15~35 days

Delivery Time : 90 days

Packaging Details : carton box

Machine Name : Hydraulic Synchronize Servo CNC Press Brake

Machine Control system : CYBELEC CybTouch 15, ESA 875W,Delem DA-69T

Machine Applicable Material : Metal .Stainless Steel .Aluminum. And So On

Hydraulic System : Bosch Rexroth Germany System

Applicable Voltage : 220V/380V/415V/440V

Optional Color : Customized

Machine Clamp : GENUO Fast Clamps

Additional Service Service Provided : Online Support Video Technical Support

After-sales services : Presented Two years warranty

Optional Length : 2500/3200/4000/5000 And So On

Contact Now

Durable & Tough Cnc Press Brake Machine HSC PRO-40T/1600 for Durable Component Fabrication

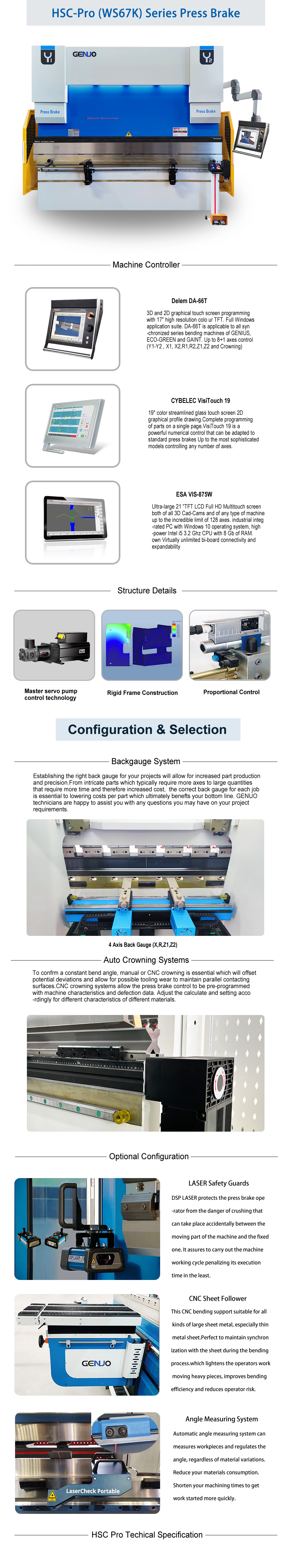

→ Product Introduction:


The Genius Pro HSC series CNC press brake is based on the validated design of the Genius series. The Y1 and Y2 axis are feedback in real-time through advanced servo proportional valves and Linear encoders, ensuring high bending accuracy and stability. The high-precision back guage system with large stroke and 4-axis can achieve flexible bending dimensions and angles. The machine automatically calculates pressure, protrusion, and unfolding dimensions based on the length and thickness of the workpiece. While continuing the excellent performance of the former, it is equipped with a more powerful CNC controller. The advanced 2D graphics programming function, automatic calculation, and step demonstration combined with the upgraded multi axis back gauge can handle more complex and irregular workpiece bending. Higher configuration machines make machine operation simpler and more efficient. This is a CNC bending machine that integrates precision and high intelligence. 40T~500T and 4~20ft optional.



→ Product Configuration:



Standard Equipment:


◆Delem DA-66T 7-Axis CNC Control


◆High-yield steel mono-block frame


◆Precision Y1, Y2 axis synchronous Ram positioning


◆Accurate heavy-duty X,R,Z1,Z2 axis back gauge


◆Auto V axis motorized CNC crowning system


◆European-style punch and 4V/2V/1V Dies


◆Fast punch clamps and movable sliding front support


◆SIEMENS main motor,Sunny pump,Schneider Electric


◆BOSCH Rexroth hydraulic system,GIVI linear encoder


◆EMB ferrule type pipe connector, NO,K sealing rings


Feature:


◇CYBELEC CybTouch 15, ESA 875W,Delem DA-69T


◇Main servo motor SVP control(Energy conservation)


◇DSP or Keli Lasersafe protection guard


◇CNC sheet follower front support device.


◇Lasercheck angle detection feedback device


◇WILA type top and bottom tool clamping system


◇Fully automatic bending robotic cell


◇Automatic rail and screw lubrication system


◇Bending tools management cabinet or trolley


◇Single/Tandem/Trio optional



→ Machine :


Durable & Tough Cnc Press Brake Machine HSC PRO-40T/1600 For Durable Component Fabrication

　 　 A B D E C 　 　 　
Model Nominal Pressure Length of Table Distance Between Columns Throat Death Open Height Ram Strokes Motor Power Approx Weight Overall Dimension
　 (KN) (mm) (mm) (mm) (mm) (mm) (kw) (kg) (L x W x H)(mm)
40T/1600 400 1600 1300 300 420 150 4 3000 1950*1750*2350
63T/2500 630 2500 2000 320 420 150 5.5 4800 2850*1750*2350
80T/2500 800 2500 2000 350 480 200 7.5 5800 2850*1850*2450
100T2500 1000 2500 2000 400 480 200 7.5 6500 2850*1850*2500
100T/3200 1000 3200 2700 400 480 200 7.5 8500 3850*1850*2600
125T/2500 1250 2500 2000 400 480 200 7.5 7600 3000*1850*2500
125T/3200 1250 3200 2700 400 480 200 11 9000 3850*1850*2600
125T/4000 1250 4000 3200 400 480 200 11 10000 4610*1850*2600
160T/3200 1600 3200 2700 400 480 200 11 10500 3900*1900*2600
160T/4000 1600 4000 3200 400 480 200 11 12000 4650*1900*2700
200T/3200 2000 3200 2700 400 480 200 15 12000 3900*1900*2700
200T/4000 2000 4000 3200 400 480 200 15 14000 4700*1900*2800
200T/5000 2000 5000 4000 400 480 200 15 18000 5800*1900*2900
200T/6000 2000 6000 4900 400 480 200 15 22000 6800*1900*3000
250T/3200 2500 3200 2700 400 520 250 18.5 14500 3900*2100*2800
250T/4000 2500 4000 3200 400 520 250 18.5 16500 4700*2100*2900
250T/5000 2500 5000 4000 400 520 250 18.5 20000 5800*2100*3000
250T/6000 2500 6000 4900 500 520 250 18.5 24000 6500*2100*3100
320T/3200 3200 3200 2700 400 520 250 22 17000 4000*2100*3000
320T/4000 3200 4000 3200 400 520 250 22 20000 4800*2200*3200
320T/5000 3200 5000 4000 500 520 250 22 25000 5800*2200*3400
320T/6000 3200 6000 4900 500 520 250 22 30000 6500*2200*3600
400T/4000 4000 4000 3200 500 600 320 30 26000 4800*2400*3500
400T/5000 4000 5000 4000 500 600 320 30 32000 5500*2400*3600
400T/6000 4000 6000 4900 500 600 320 30 38000 6500*2400*3800
500T/4000 5000 4000 3200 500 600 320 37 30000 4800*2600*3600
500T/5000 5000 5000 4000 500 600 320 37 39000 5500*2600*3800
500T/6000 5000 6000 4900 500 600 320 37 50000 6500*2600*4000
